Seat Heater Installation

by [email protected]









          Tools required:




  • Hog-ring pliers (needle-nose pliers or diagonal cutters can be used
          to remove hog-rings)
    •

  • Phillips-head screwdriver
    •







          Parts required:




  • Approximately 20 hog-rings (zip-ties can be substituted)
    •

  • Seat-back heater element (LR part number AWR5157)
    •

  • Seat-bottom heater element (LR part number (AWR5156)
    •



Click
              here for switch installation instructions

      (Thanks to Disco2.com)




  • Left Heated Seat Switch (LR part number YUG102430)
    •

  • Right Heated Seat Switch (LR Part number YUG102440)
    •

  • Heated Seat Switch Cover Plate (LR part number BTR3655LNF)
    •







          Time

 required:




  • Approximately 3 hours
    •

























Click thumbnail for a larger version

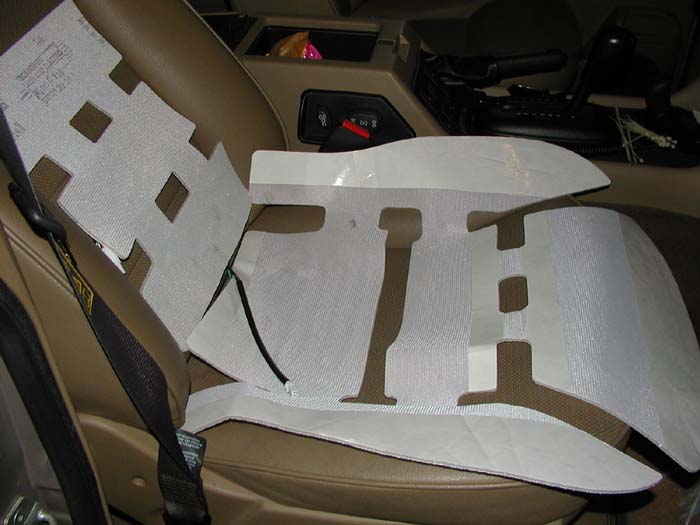

Figure 1:


          Seat heater element layout

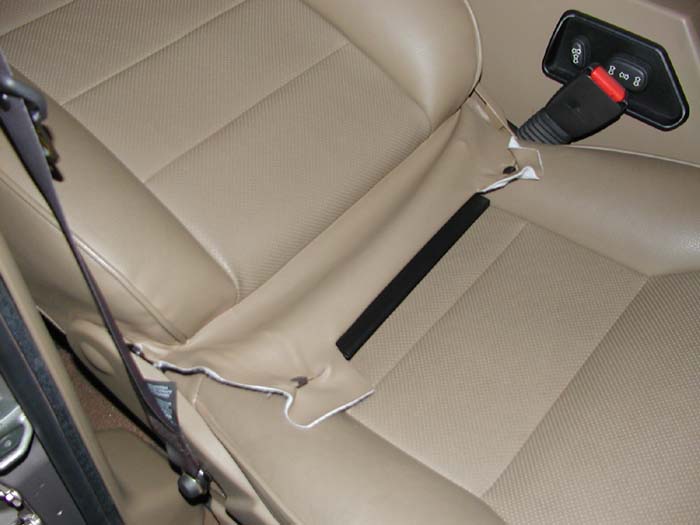

          Step 1:

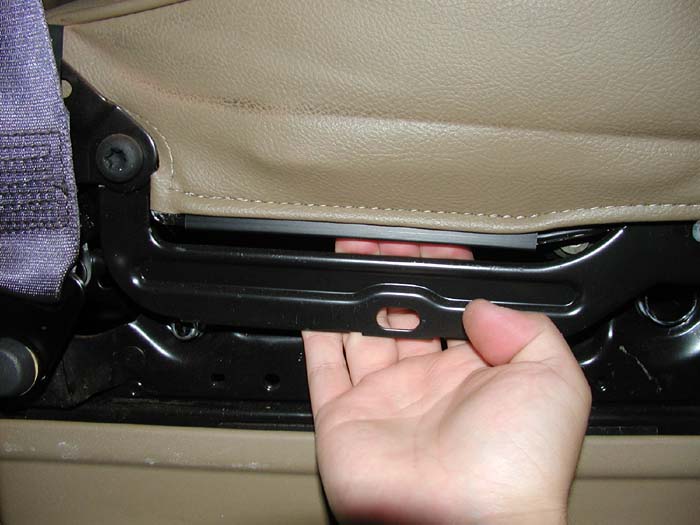

          Unclip front seat-back upholstery clip





          Step 2:
          Unhook tension cables from bottom of seat-back frame

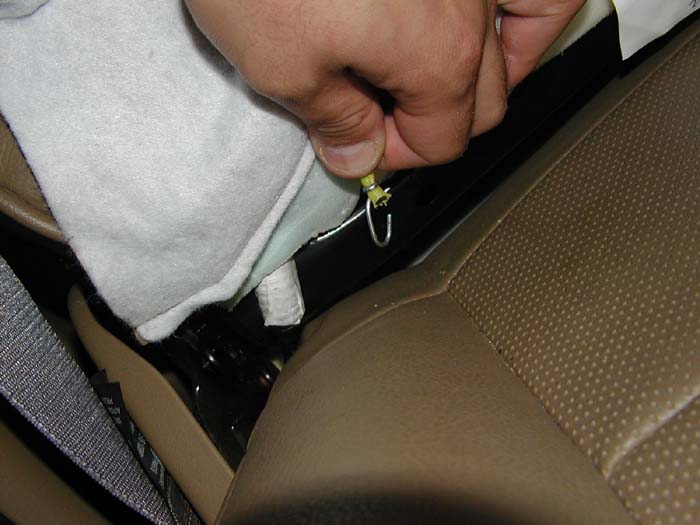

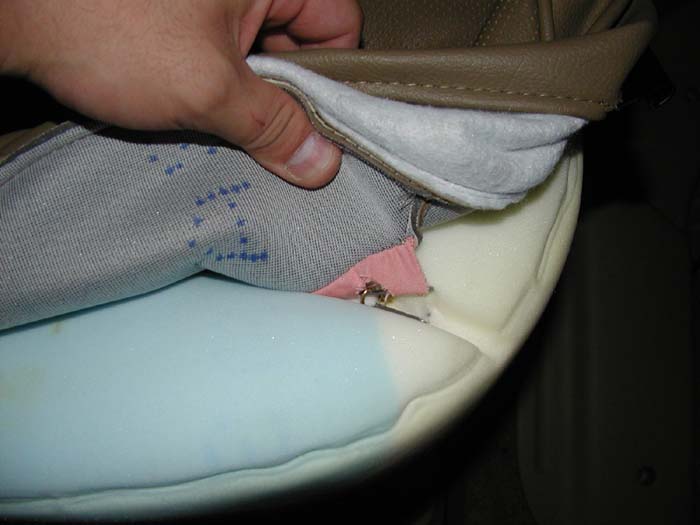

          Step 3:
          Expose and remove hog-rings


      Remove 6 hog-rings

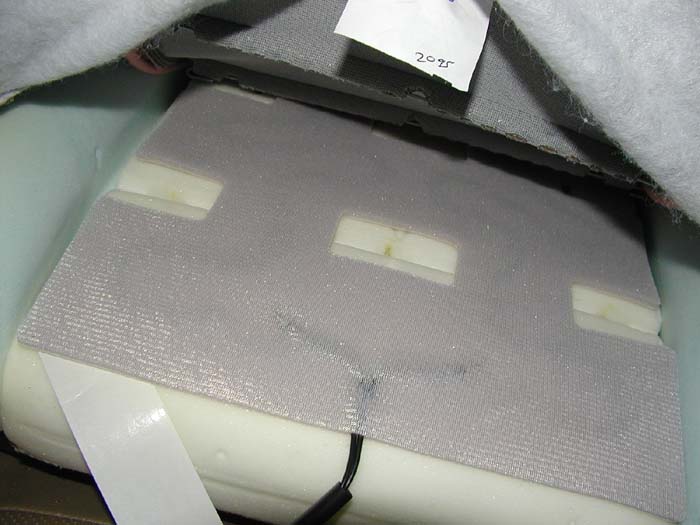

          Step 4:
          Remove adhesive backing from heater element and place
            heater element onto seat-back foam cushion

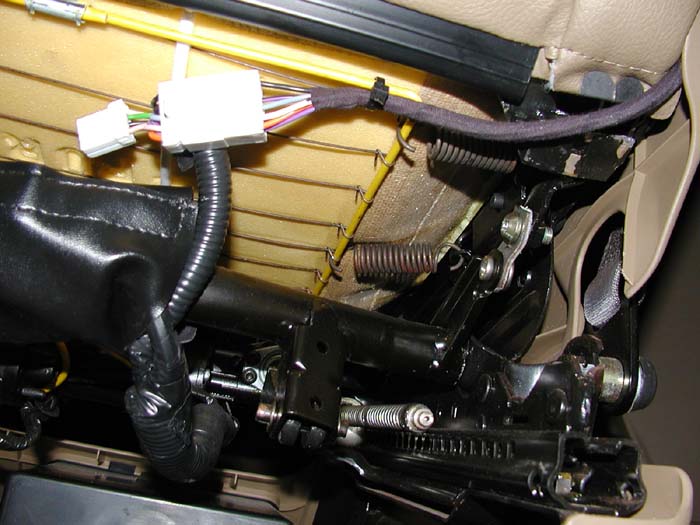

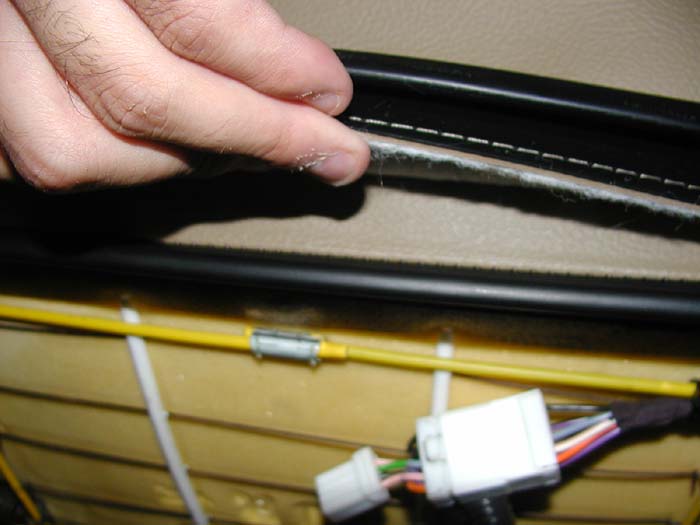

Figure 2:


          Displayed is the plug where the seat-back heater element
            connects to

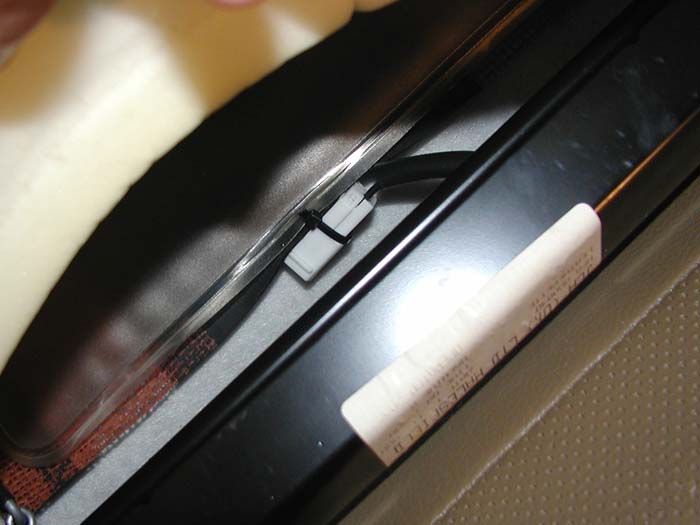

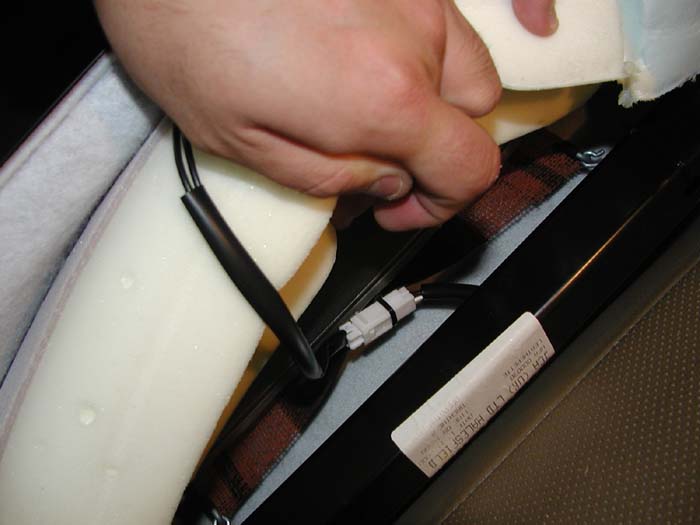

Figure 3:


          Displayed is the seat-back heater element plugged into
            the seat wire harness

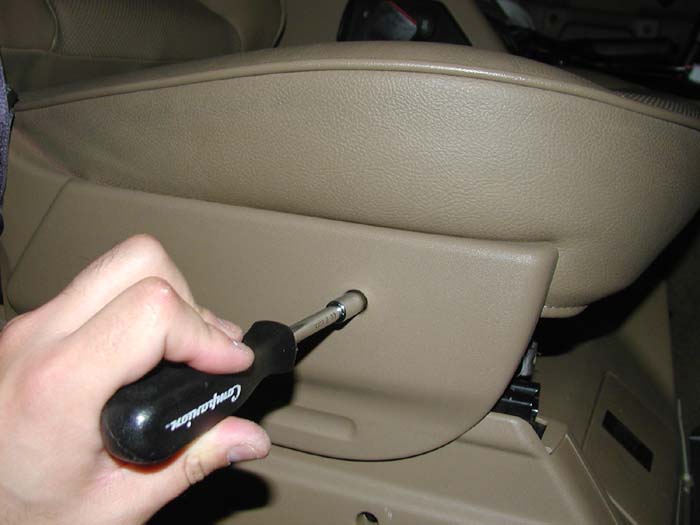

          Step 5:
          Unscrew and remove front seat outer valence assembly





          Step 6:
          Unclip seat-bottom upholstery retainer clips

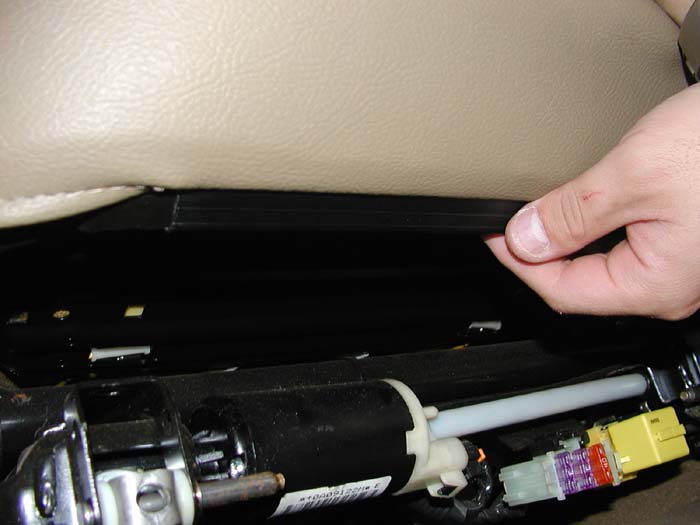

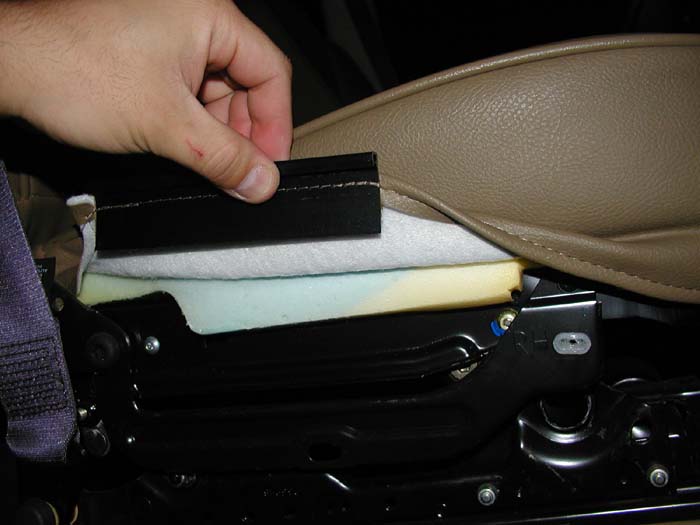

Figure 4:


          Outer seat-bottom upholstery clip

      (Note: there is also an inner seat-bottom upholstery clip)







Figure 5:


          Front seat-bottom upholstery clip







Figure 6:


          Rear seat-bottom upholstery clip

      (Note:  this clip is obscured behind seat-back rear upholstery clip)





          Step 7:
          Lift seat-bottom upholstery to expose hog-rings

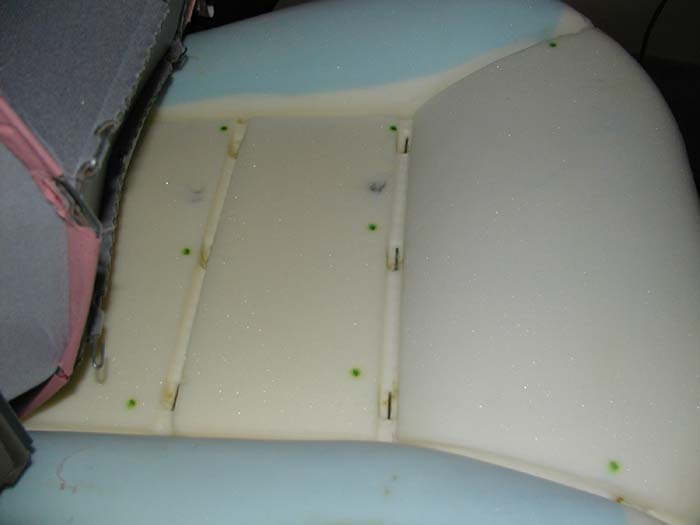

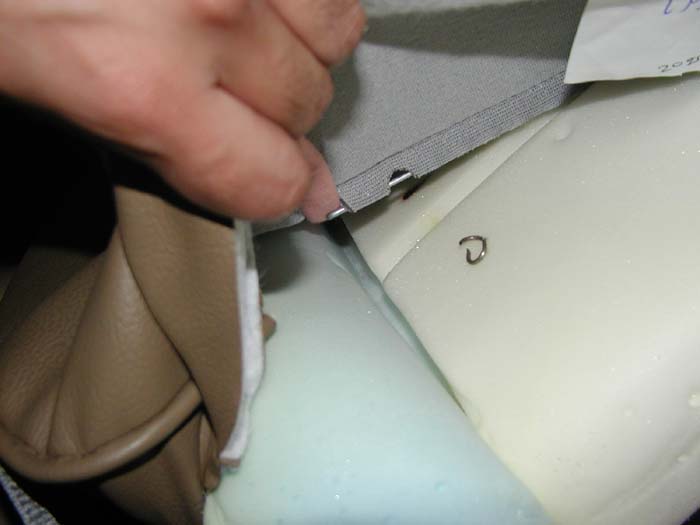

          Step 8:
          Expose and remove hog-rings


      Remove 12 hog-rings

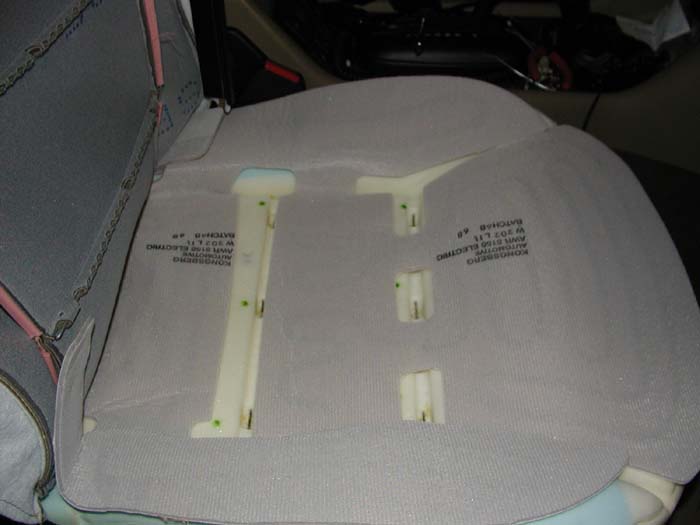

          Step 9:
          Remove adhesive backing from heater element and place
            on seat-bottom foam cushion.

      Feed heater element wire out the back of the seat cushion and plug into
      seat wire harness under the seat bottom cushion.







Figure 7:

          Displayed is the plug where the seat-bottom
            heater element connects to

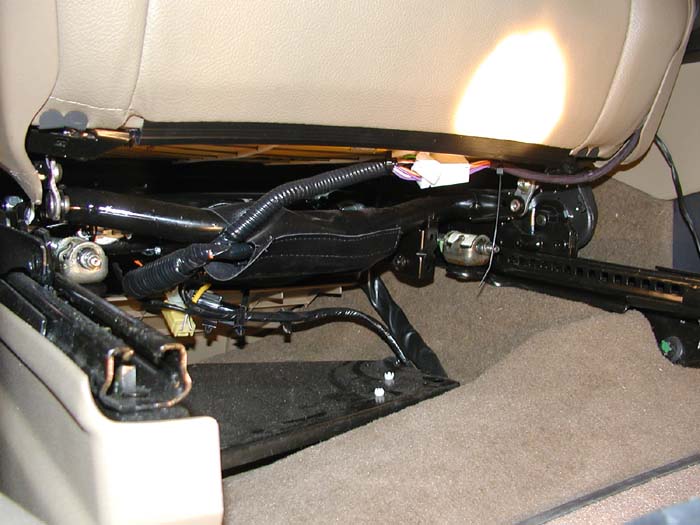

Figure 8:


          Displayed is the plug where the seat-bottom
            heater element connects to





          Step 10:
          Secure upholstery with new hog-rings
            and attaching upholstery clips in reverse order shown in steps 1,
            2, and 6





          Step 11:
          Enjoy your Land Rover Genuine seat heaters!
