1997 Disco Immobilized

pdXDisco97

Well-known member
Dec 6, 2011
276
32
Oregon
Looking at purchasing another 1997 D1. It's sitting at a mechanic/restoration shop where it's been for a few months with a missing key fob and no start. The mechanic says it immobilized and the truck "thinks it's stolen" due to the missing key fob so the ECM is cutting power to the fuel pump. Owner is sick of dealing with it so I'm thinking about taking it on as a temp replacement while I restore my XD (and let my son think it's his).

Any quick suggestions to bypass the security? Or am I in for a key fob replacement and re-flash of the ECM?



terryjm1

Well-known member
Jan 23, 2011
680
113
Maybe send the 10AS unit to Logan Gibson and get a couple Fobs programmed to it? Last I checked he had some fobs.

  • Like
Reactions: logan_gibson

p m

Administrator
Staff member
Apr 19, 2004
14,900
383
56
La Jolla, CA
www.3rj.org
  • Like
Reactions: pdXDisco97

pdXDisco97

Well-known member
Dec 6, 2011
276
32
Oregon
Nothing's wrong with Google, but 1) I trust Dweb more than Google, 2) if I just used Google, I wouldn't get the snarky responses and interact with fine folks like yourself. It's half the fun!
What's wrong with Google?


p m

Administrator
Staff member
Apr 19, 2004
14,900
383
56
La Jolla, CA
www.3rj.org
Ha
There were times when PTSchram alluded to ways to bypass the immobilizer on RRC/D1, but never disclosed them.
One thing that happened to my D1 was this: a sticky door lock caused TWO fuses to blow feeding the green immobilizer box. I eventually replaced one with a circuit breaker, and haven't had an issue since 2001.


p m

Administrator
Staff member
Apr 19, 2004
14,900
383
56
La Jolla, CA
www.3rj.org
Starter motor circuit: black wire with orange stripe needs to be shorted to the ground. The only other _meaningful_ connection between ECU and alarm box is black wire.

  • Like
Reactions: pdXDisco97

logan_gibson

Well-known member
Dec 20, 2016
246
42
Alabama
Ha
There were times when PTSchram alluded to ways to bypass the immobilizer on RRC/D1, but never disclosed them.
One thing that happened to my D1 was this: a sticky door lock caused TWO fuses to blow feeding the green immobilizer box. I eventually replaced one with a circuit breaker, and haven't had an issue since 2001.
He disclosed it, but not publicly posted because it makes the trucks easier to steal. You can PM him and he will gladly explain it.

Thanks @terryjm1 👍

  • Like
Reactions: robbyb20

Gordo

Well-known member
Try a married ecu and 10as (green box) from ur other truck. That should at least make it run. Door microswitchs can cause issues too, especially driver door. But if we’re me I’d want to hear it run before I bought it. Worth mentioning there are advanced evap ecus in later D1. Ideally u want an ecu from an similar evap system. Good rover software is probably needed to fix it otherwise. Unless pt can be reached easily.

  • Like
Reactions: pdXDisco97

pdXDisco97

Well-known member
Dec 6, 2011
276
32
Oregon
Try a married ecu and 10as (green box) from ur other truck. That should at least make it run. Door microswitchs can cause issues too, especially driver door. But if we’re me I’d want to hear it run before I bought it. Worth mentioning there are advanced evap ecus in later D1. Ideally u want an ecu from an similar evap system. Good rover software is probably needed to fix it otherwise. Unless pt can be reached easily.
Thanks, going to look at it next weekend. Totally agree, want it to run before purchase!


Flyfish

Well-known member
Oct 29, 2004
1,071
87
49
St. Louis

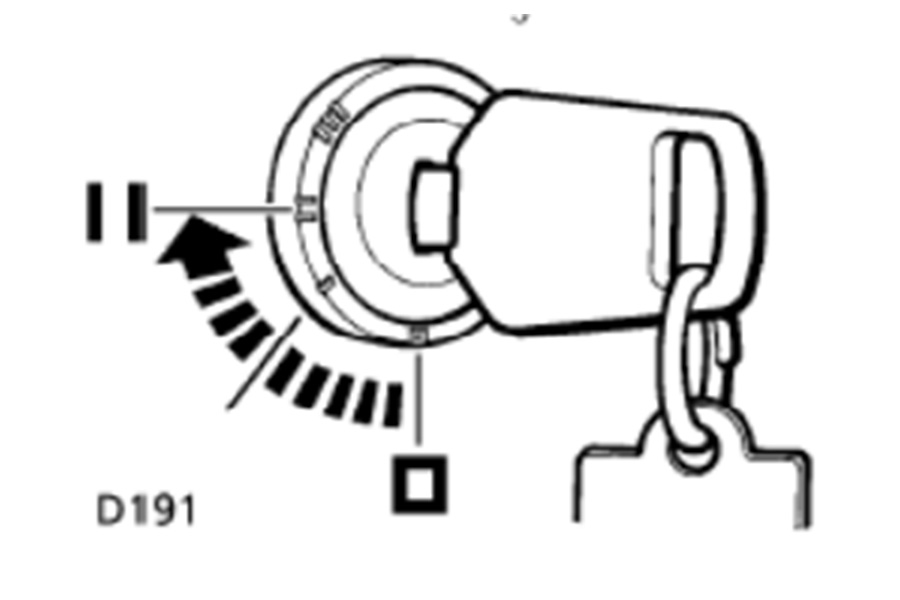

You should be able to use the emergency key access code method. Hopefully you have the code for your truck. Otherwise 1515 may only work 1 time when you enter it.


Double check your engine management fuse under the steering wheel. I forgot which one but the corresponding picture on the label is an engine..


  • Like
Reactions: pdXDisco97
