Sticking brake

Mudhen

Well-known member
Nov 26, 2004
60
0
Eliot, ME, USA
Hey all - recently picked up a used LR4 with 70k miles from Land Rover White Plains in NY. They did the brakes before we picked it up...we've since put about 10k miles on it. Last night driving home we noticed a slight vibration and when we got home I felt the wheels and the right rear was HOT and stinking like it was dragging. I jacked the back end up this morning and the rears turned freely - took it for a short drive...still hot. Tried releasing the EPB with the cable, didn't seem to help.

Sticking caliper maybe? Not sure why the wheels spun freely when it was jacked up, though. Digging around for the EPB reset procedure - maybe that might help??

Thanks!

Pat


Mudhen

Well-known member
Nov 26, 2004
60
0
Eliot, ME, USA

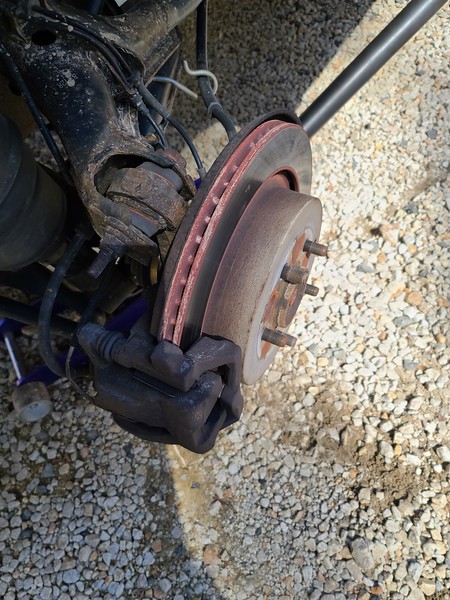

Nice coloration of brake dust on the rotor, too.



discostew

Well-known member
Sep 14, 2010
6,772
649
Northern Illinois
It's either the caliper or the slide pins and bracket. Or it's both. Try to pry the piston back in. If it goes back in then you should be able to move the caliper on the slides.


Mudhen

Well-known member
Nov 26, 2004
60
0
Eliot, ME, USA

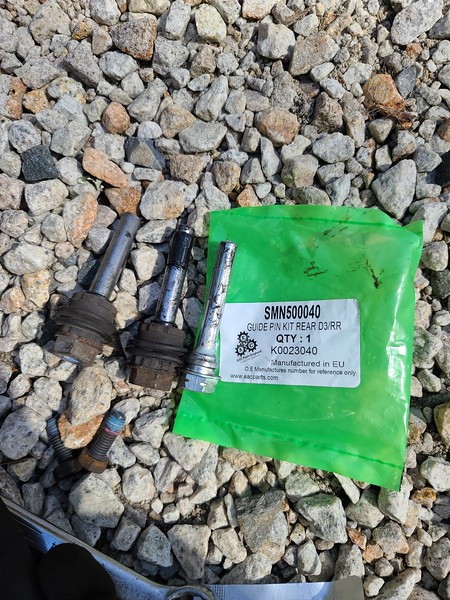

Well, this is frustrating! The new pins are about 2mm thinner than the old...and neither had a place for the rubber piece either. They didn't seem all that'stuck', though - and the pads are worn pretty evenly. Maybe not the issue afterall.
